Latest EVSE Charging Station For Electric Cars at Home 7kw 3 Phase On Sale
Lekol does mostly include type 1, type 2, one phase, three phase, level 2 voltage, 16A, 32A, 40A current, 3.5kw, 7kw, 10kw, 11kw, 22kw charging station of SAE J1172 and IEC 62196-2 standards for home use(residential) and commercial use which cover most market needs in most countries.
As a manufacturer of ev charging stations, to survive in this fierce market, our products are supposed to last long, to be safe,reliable, affordable and easy to use for everyone so we take quality, safty, stability, price, service and supports to our customers of great importance. Meanwhile, startups, small businesses and large corporates are all welcomed at Lekol. We’re able to produce large quantity in the same time with the flexibility to do customize designs, logos and colors, samples and trial ordersetc to boost your business and brand growth.
Whatever you requires, we have the people, the technology and determination to make it happen for you!
Feature
APP Control
Setting Current: you can set the current when the power grid is overload.
* Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.
* Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an appointment of the charging by APP, it is very convenient.
* Record: you can check the charging record by APP in any time.
* The best Choice for home market
Specification
| Charging Connector/ plug type | IEC62196-2 /Type 2 | SAEJ1772 /Type 1 |
| AC Power input rating | 1 phase 220V±15% | | |
| AC Power Output Rating | 3.5KW /16A | 11KW /16A | 3.5KW/16A |
| 7KW/32A | 22KW/32A | 7KW/32A |
| N/A | 43KW/63A | 10KW.40A |
| Rated Frequency | 50/60HZ |
| User interface & control |
| Charging control | Plug and charge √ | RFID card √ | CMS operate √ | |
| Display Screen | 4.3inch LCD screen |
| Wifi connection | Support √ | OCPP Protocol | 1.6J √ | 2.0.1 √ |
| Ethernet Interface | LAN(RJ-45) √ | APP interface | Support √ | |
| Environmental |
| Storage Temperature | -40 ~ 75℃ | Operating Temperature | -30 ~ 55℃ |
| Operating Humidity | Up tp 95%, non-condensing | Altitude | ≤2000m |
| Cooling Method | Natural Cooling | | |
| Protection |
| Over Voltage Protection | | Under Voltage Protection | |
| Over Load Protection | | Short Circuit Protection | |
| Earth Leakage Protection | | Ground Protection | |
| Over-temp Protection | | Surge Protection | |
| | | Protection ratings | |
| Wallbox Charger Mechanical |
| Dimension(H×W×D,mm) | 410×260×164 | Weight | 1 phase :9kg 3 phase:12kg |
| Charging Cable Length | 5m or 7.5m or customized | Enclosure Material | Front-panel: Tempered Glass, Back-cover: Plate Metal |

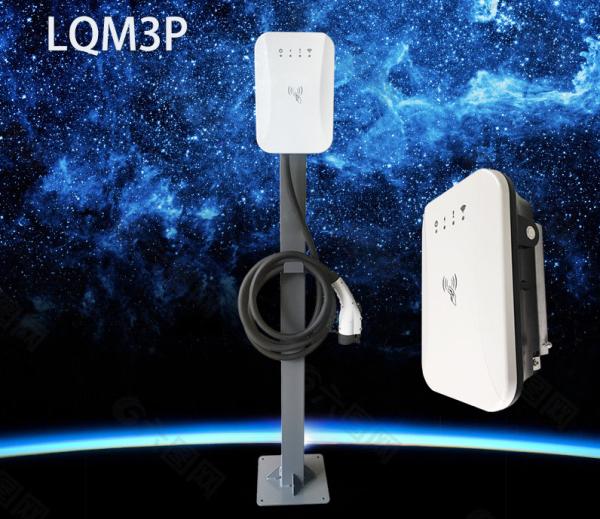

| LQM3T Mounting Pole(Optional) |
| Dimension(H×W×D,mm) | 1400×200×100 | Weight | ＜8kg |
| Enclosure Material | Metal | | |
WHY US?
1. First, Lekol’s chargers Compatibility with most global Electric Vehicles charging interface. We have the CE, ROHS, REACH certificate for European Market.
2. Lekol has a series of EV chargers to meet different customer’s needs. such as for home use or for commercial.
3. Lekol is the directly manufacturer, our main products are AC Wallbox, AC Integrated EV Charger, DC fast charging stations, EV connectors. There is no the middleman, you can get the best price and services. Lekol has strong R&D Capability, OEM and ODM are available.
4. How to promise the quality? First, Lekol produce the chargers in strict accordance with quality management system standard
(ISO9000). Second, in the production, we will age and test the EV CHARGER 3times; Third, through the Digital Factory,
production can be traced and visualized, so as to ensure the stability of products.
5. Our mission is: Create higher value for customers with innovative products and services. Come and be our customers!
